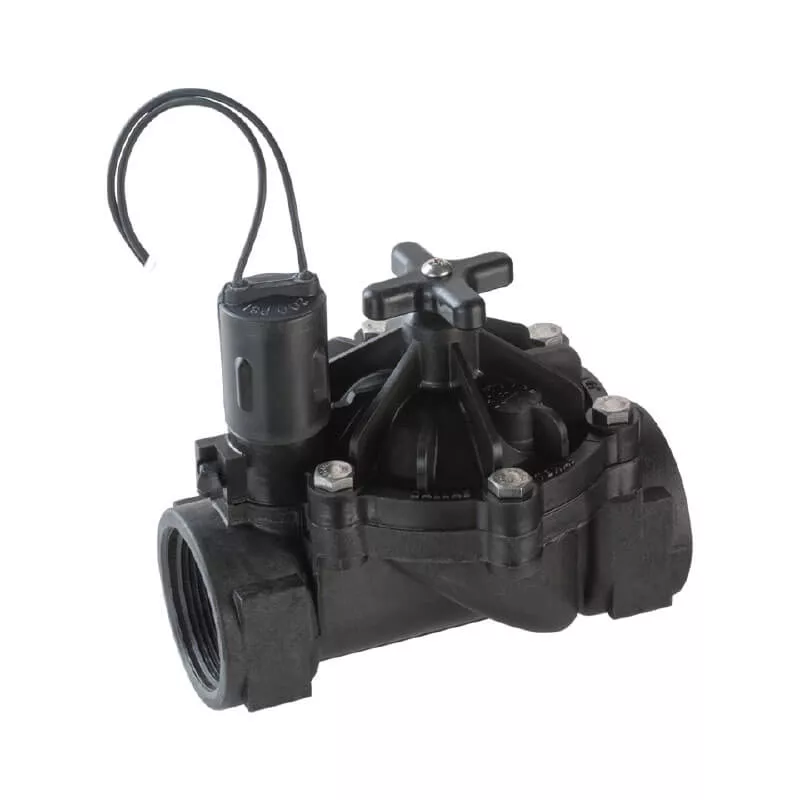

Weathermatic – 1" BlackBullet Max Valve – Contamination Resistant – Plastic

Weathermatic – 1″ BlackBullet Max Valve – Contamination Resistant – Plastic

Original price was: $30.74.Current price is: $20.75.

SKU: 11024FCR-10 Category:

Description

Unique “reverse flow” design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent “stretching,” a common cause of valve failure.

Features

  • 225 PSI (15,5 BAR) rating
  • S24B high-efficiency solenoid for positive opening at high pressures; includes stainless steel actuator and brass threads for long life
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm’s self-cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Brass shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
  • High-strength glass-filled body and cover with 1/4” stainless steel cover bolts and mating brass body inserts
  • Brass non-rising flow control stem throttles valve from full open to closed position
  • Excellent for low volume irrigation
  • Contamination-resistant (CR)
  • Chlorine- and chloramine-resistant EPDM diaphragm material

Electrical

Wiring requires a single lead from the controller to each solenoid, plus a common neutral to all solenoids; type UF wire, U.L. listed, is recommended for all hookups

Do not use nominal voltage ratings listed above for sizing of valve wires
