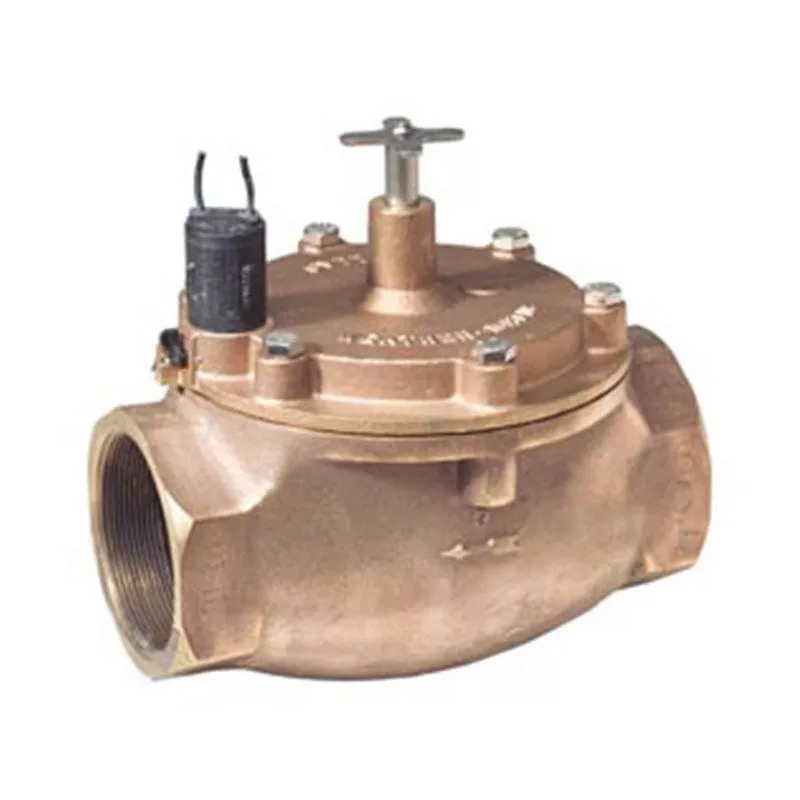

Weathermatic – 1-1/2" Red Brass Valve – 24 VAC with Flow Control

Weathermatic – 1-1/2″ Red Brass Valve – 24 VAC with Flow Control

Original price was: $79.74.Current price is: $56.54.

SKU: 8200CR-15 Category:

Description

1-1/2″ Bronze Bullet 8200 Series

Unique reverse flow design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent stretching, a common cause of valve failure

  • 225 PSI (15,5 BAR) rating
  • S24B high-efficiency solenoid for positive opening at high pressures; includes stainless steel actuator and brass threads for long life
  • Bronze body and cover with stainless steal bolts
  • Bronze material with 82% copper content
  • Reverse flow design for water conservation in the event of failure
  • Diaphragms self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Brass shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
  • High-strength glass-filled body and cover with ¼ stainless steel cover bolts and mating brass body inserts
  • Brass non-rising flow control stem throttles valve from full open to closed position
  • Excellent for low volume irrigation
  • Contamination-resistant (CR)
  • Chlorine- and chloramine-resistant EPDM diaphragm material
